import paddle
from paddle.nn import Conv2D, MaxPool2D, Linear, BatchNorm, Upsample
import numpy as np
import matplotlib.pyplot as plt
1
2
3
4
train_reader = paddle.vision.datasets.MNIST(mode='train')
print("训练集样本数:", len(train_reader))
print("样本形状:", np.array(train_reader[0][0]).shape)
print("标签形状:", np.array(train_reader[0][1]).shape)
1
2
3
训练集样本数: 60000
样本形状: (28, 28)
标签形状: (1,)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
# 噪声维度
Z_DIM = 100
BATCH_SIZE = 128

paddle.vision.set_image_backend('cv2')
mnist_generator = paddle.io.DataLoader(paddle.vision.datasets.MNIST(mode='train'),
                                       batch_size=BATCH_SIZE, shuffle=True)

# 生成假图片的reader, 噪声生成，通过由噪声来生成假的图片数据输入
class ZReader(paddle.io.Dataset):
    def __init__(self, z_dim):
        super(ZReader, self).__init__()
        self.z_dim = z_dim
    def __getitem__(self, index):
        return np.random.normal(0.0, 1.0, (self.z_dim,1,1)).astype('float32')
    def __len__(self):
        return int(1e8)  # a large number

z_dataset = ZReader(Z_DIM)
z_generator = paddle.io.DataLoader(z_dataset, batch_size=BATCH_SIZE)
1
2
3
4
5
6
image,label =next(mnist_generator())
print("图像数据形状和对应数据为:", image.shape)
print("图像标签形状和对应数据为:", label.shape)

plt.imshow(image[0].numpy().astype(np.uint8)) # (28,28)
plt.show

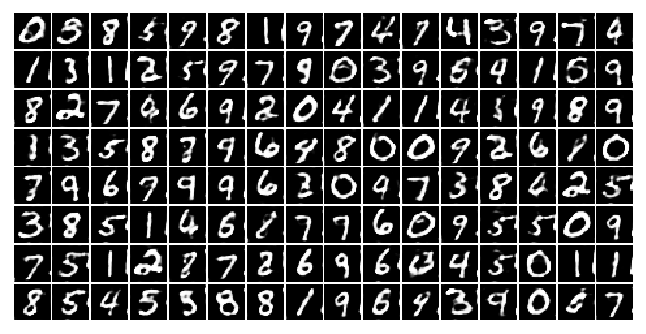

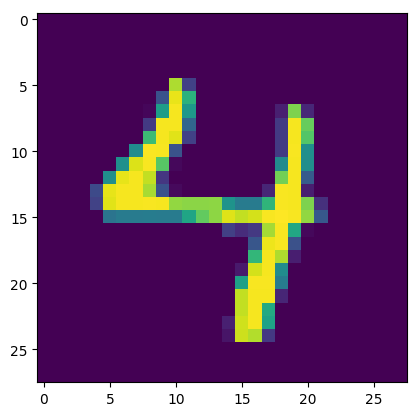

原始MNIST图片示例

测试一下噪声

1
2
z_tmp = next(z_generator())
print('一个batch噪声z的形状：', z_tmp[0].shape)
1
一个batch噪声z的形状： [128, 100, 1, 1]

GAN 网络

GAN 性能的提升从生成器 G 和判别器 D 进行左右互搏、交替完善的过程得到的。所以其 G 网络和 D 网络的能力应该设计得相近，复杂度也差不多。这个项目中的生成器，采用了两个全链接层接两组上采样和转置卷积层，将输入的噪声 Z 逐渐转化为 1×28×28 的单通道图片输出。

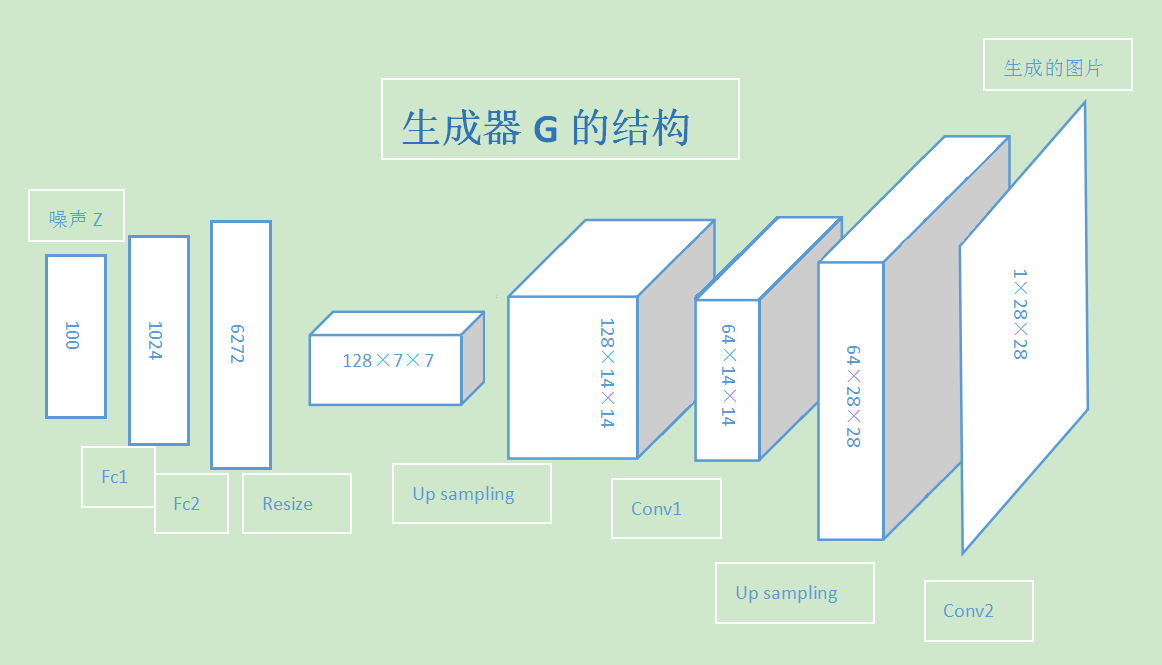

生成器结构：

生成器结构

判别器的结构正好相反，先通过两组卷积和池化层将输入的图片转化为越来越小的特征图，再经过两层全链接层，输出图片是真是假的二分类结果。

判别器结构：

判别器结构
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
import paddle

# 判别器 D
class D(paddle.nn.Layer):
    def __init__(self, name_scope):
        super(D, self).__init__(name_scope)
        name_scope = self.full_name()
        self.conv1 = paddle.fluid.Conv2D(num_channels=1, num_filters=64, filter_size=3)
        self.bn1 = paddle.nn.BatchNorm(num_channels=64, act='leaky_relu')
        self.pool1 = paddle.fluid.Pool2D(pool_size=2, pool_stride=2)
        self.conv2 = paddle.fluid.Conv2D(num_channels=64, num_filters=128, filter_size=3)
        self.bn2 = paddle.nn.BatchNorm(num_channels=128, act='leaky_relu')
        self.pool2 = paddle.fluid.Pool2D(pool_size=2, pool_stride=2)
        self.fc1 = paddle.fluid.Linear(input_dim=128 * 5 * 5, output_dim=1024)
        self.bnfc1 = paddle.nn.BatchNorm(num_channels=1024, act='leaky_relu')
        self.fc2 = paddle.fluid.Linear(input_dim=1024, output_dim=1)

    def forward(self, img):
        y = self.conv1(img)
        y = self.bn1(y)
        y = self.pool1(y)
        y = self.conv2(y)
        y = self.bn2(y)
        y = self.pool2(y)
        y = paddle.reshape(x=y, shape=[-1, 128 * 5 * 5])
        y = self.fc1(y)
        y = self.bnfc1(y)
        y = self.fc2(y)
        return y

# 生成网络G
class G(paddle.nn.Layer):
    def __init__(self, name_scope):
        super(G, self).__init__(name_scope)
        name_scope = self.full_name()
        # 第一组全连接和BN层
        self.fc1 = paddle.fluid.Linear(input_dim=100, output_dim=1024)
        self.bn1 = paddle.nn.BatchNorm(num_channels=1024, act='tanh')
        # 第二组全连接和BN层
        self.fc2 = paddle.fluid.Linear(input_dim=1024, output_dim=128 * 7 * 7)
        self.bn2 = paddle.nn.BatchNorm(num_channels=128 * 7 * 7, act='tanh')
        # 第一组卷积运算
        self.conv1 = paddle.fluid.Conv2D(num_channels=128, num_filters=64, filter_size=5, padding=2)
        self.bn3 = paddle.nn.BatchNorm(num_channels=64, act='tanh')
        # 第二组卷积运算
        self.conv2 = paddle.fluid.Conv2D(num_channels=64, num_filters=1, filter_size=5, padding=2, act='tanh')

    def forward(self, z):
        z = paddle.reshape(x=z, shape=[-1, 100])
        y = self.fc1(z)
        y = self.bn1(y)
        y = self.fc2(y)
        y = self.bn2(y)
        y = paddle.reshape(x=y, shape=[-1, 128, 7, 7])
        y = paddle.fluid.layers.image_resize(y, scale=2)
        y = self.conv1(y)
        y = self.bn3(y)
        y = paddle.fluid.layers.image_resize(y, scale=2)
        y = self.conv2(y)
        return y
1
paddle.Model(G('G')).summary((-1,100))
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
---------------------------------------------------------------------------
 Layer (type)       Input Shape          Output Shape         Param #
===========================================================================
   Linear-1          [[1, 100]]           [1, 1024]           103,424
  BatchNorm-1       [[1, 1024]]           [1, 1024]            4,096
   Linear-2         [[1, 1024]]           [1, 6272]          6,428,800
  BatchNorm-2       [[1, 6272]]           [1, 6272]           25,088
   Conv2D-1      [[1, 128, 14, 14]]    [1, 64, 14, 14]        204,864
  BatchNorm-3    [[1, 64, 14, 14]]     [1, 64, 14, 14]          256
   Conv2D-2      [[1, 64, 28, 28]]      [1, 1, 28, 28]         1,601
===========================================================================
Total params: 6,768,129
Trainable params: 6,738,689
Non-trainable params: 29,440
---------------------------------------------------------------------------
Input size (MB): 0.00
Forward/backward pass size (MB): 0.31
Params size (MB): 25.82
Estimated Total Size (MB): 26.13
---------------------------------------------------------------------------
1
paddle.Model(D('D')).summary((-1,1,28,28))
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
---------------------------------------------------------------------------
 Layer (type)       Input Shape          Output Shape         Param #
===========================================================================
   Conv2D-3       [[1, 1, 28, 28]]     [1, 64, 26, 26]          640
  BatchNorm-4    [[1, 64, 26, 26]]     [1, 64, 26, 26]          256
   Pool2D-1      [[1, 64, 26, 26]]     [1, 64, 13, 13]           0
   Conv2D-4      [[1, 64, 13, 13]]     [1, 128, 11, 11]       73,856
  BatchNorm-5    [[1, 128, 11, 11]]    [1, 128, 11, 11]         512
   Pool2D-2      [[1, 128, 11, 11]]     [1, 128, 5, 5]           0
   Linear-3         [[1, 3200]]           [1, 1024]          3,277,824
  BatchNorm-6       [[1, 1024]]           [1, 1024]            4,096
   Linear-4         [[1, 1024]]             [1, 1]             1,025
===========================================================================
Total params: 3,358,209
Trainable params: 3,353,345
Non-trainable params: 4,864
---------------------------------------------------------------------------
Input size (MB): 0.00
Forward/backward pass size (MB): 1.02
Params size (MB): 12.81
Estimated Total Size (MB): 13.83
---------------------------------------------------------------------------
1
2
3
4
5
6
7
8
9
10
11
z_tmp = next(z_generator())
g_tmp = G('G')
tmp_g = g_tmp(z_tmp[0]).numpy()
print('生成器G生成图片数据的形状：', tmp_g.shape)
plt.imshow(tmp_g[0][0])
plt.show()

d_tmp = D('D')
tmp_d = d_tmp(paddle.to_tensor(tmp_g)).numpy()
print('判别器D判别生成的图片的概率数据形状：', tmp_d.shape)
print(max(tmp_d))
1
2
3
生成器G生成图片数据的形状： (128, 1, 28, 28)
判别器D判别生成的图片的概率数据形状： (128, 1)
[3.0552034]

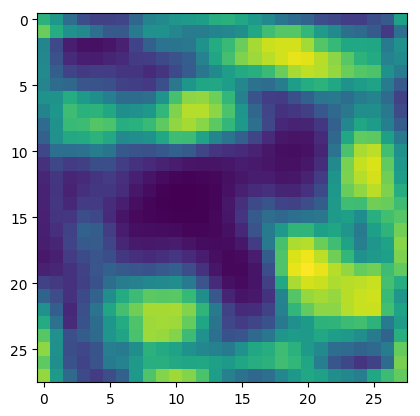

初始随机生成的图片

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
import matplotlib.pyplot as plt
%matplotlib inline

def show_image_grid(images, batch_size=128, pass_id=None):
    fig = plt.figure(figsize=(8, batch_size/32))
    gs = plt.GridSpec(int(batch_size/16), 16)
    gs.update(wspace=0.05, hspace=0.05)

    for i, image in enumerate(images):
        ax = plt.subplot(gs[i])
        plt.axis('off')
        ax.set_xticklabels([])
        ax.set_yticklabels([])
        ax.set_aspect('equal')
        plt.imshow(image[0], cmap='Greys_r')
    plt.show()

show_image_grid(tmp_g, BATCH_SIZE)

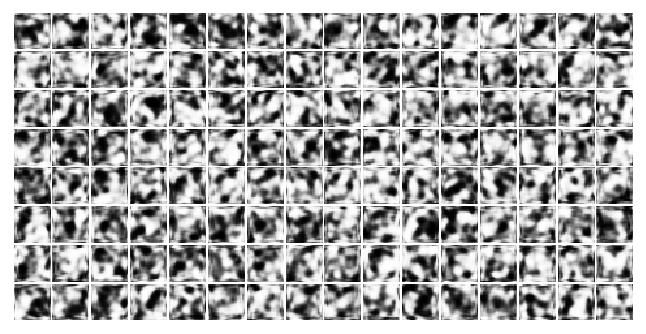

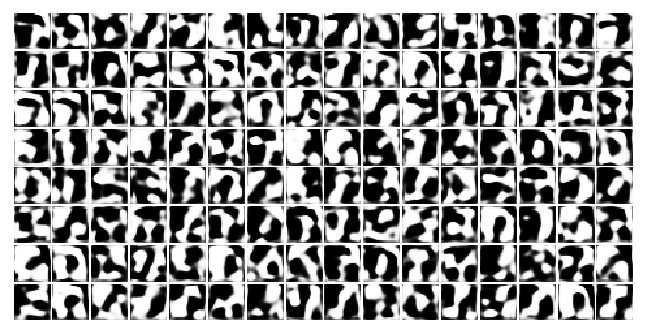

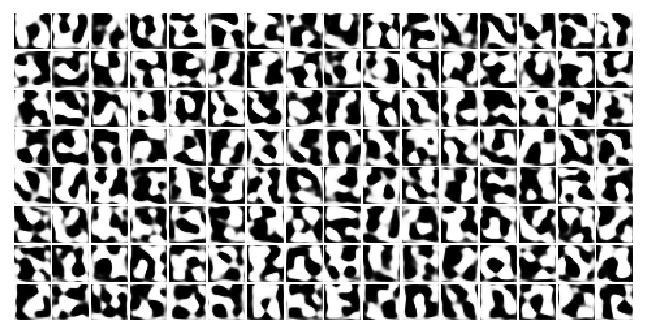

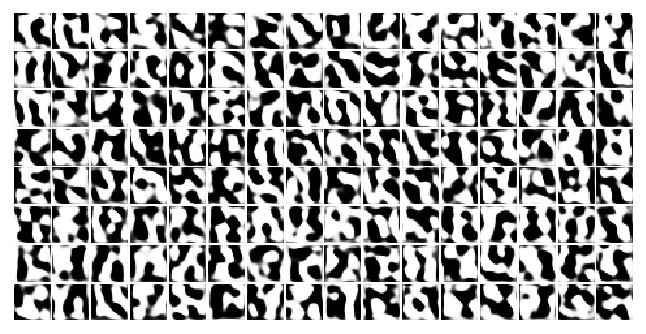

初始随机生成图片网格

网络训练

网络的训练优化目标就是如下公式：

公式出自 Goodfellow 在 2014 年发表的论文 Generative Adversarial Nets。

上式中等号左边的部分：

表示的是生成样本和真实样本的差异度，可以使用二分类（真、假两个类别）的交叉商损失。 表示在生成器固定的情况下，通过最大化交叉商损失 来更新判别器 D 的参数。 表示生成器要在判别器最大化真、假图片交叉商损失 的情况下，最小化这个交叉商损失。

等式的右边其实就是将等号左边的交叉商损失公式展开，并写成概率分布的期望形式。详细的推导请参见原论文《Generative Adversarial Nets》。

下面是训练模型的代码，有详细的注释。大致过程是：先用真图片训练一次判别器 d 的参数，再用生成器 g 生成的假图片训练一次判别器 d 的参数，最后用判别器 d 判断生成器 g 生成的假图片的概率值更新一次生成器 g 的参数，即每轮训练先训练两次判别器 d，再训练一次生成器 g，使得判别器 d 的能力始终稍稍高于生成器 g 一些。

1
2
3
for i, real_image in enumerate(mnist_generator()):
    print(real_image[0].shape, len(real_image[0]))
    break
1
[128, 28, 28] 128

训练代码

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
import paddle.nn.functional as F
d = D('D')
d.train()
g = G('G')
g.train()
# 创建优化方法
real_d_optimizer = paddle.optimizer.Adam(learning_rate=1e-4, parameters=d.parameters())
fake_d_optimizer = paddle.optimizer.Adam(learning_rate=1e-4, parameters=d.parameters())
g_optimizer = paddle.optimizer.Adam(learning_rate=5e-4, parameters=g.parameters())

iteration_num = 0
epoch_num = 5
for epoch in range(epoch_num):
    for i, (real_image, label) in enumerate(mnist_generator()):
        if(len(real_image) != BATCH_SIZE):
            continue
        iteration_num += 1
        # 训练判别器d识别真实图片
        real_image = real_image.unsqueeze(1)
        real_image = paddle.to_tensor(real_image)
        ones = paddle.to_tensor(np.ones([len(real_image), 1]).astype('float32'))
        p_real = d(real_image)
        real_cost = F.binary_cross_entropy_with_logits(p_real, ones)
        real_avg_cost = paddle.mean(real_cost)
        real_avg_cost.backward()
        real_d_optimizer.minimize(real_avg_cost)
        d.clear_gradients()

        # 训练判别器d识别生成器生成的假图片
        z = next(z_generator())
        zeros = paddle.to_tensor(np.zeros([len(real_image), 1]).astype('float32'))
        p_fake = d(g(z[0]))
        fake_cost = F.binary_cross_entropy_with_logits(p_fake, zeros)
        fake_avg_cost = paddle.mean(fake_cost)
        fake_avg_cost.backward()
        fake_d_optimizer.minimize(fake_avg_cost)
        d.clear_gradients()

        # 训练生成器g
        fake = g(z[0])
        p_confused = d(fake)
        g_cost = paddle.fluid.layers.sigmoid_cross_entropy_with_logits(p_confused, ones)
        g_avg_cost = paddle.mean(x=g_cost)
        g_avg_cost.backward()
        g_optimizer.minimize(g_avg_cost)
        g.clear_gradients()

        if(iteration_num % 100 == 0):
            print('epoch =', epoch, ', batch =', i, ', real_d_loss =', real_avg_cost.numpy(),
                ', fake_d_loss =', fake_avg_cost.numpy(), 'g_loss =', g_avg_cost.numpy())
            show_image_grid(fake.numpy(), BATCH_SIZE, epoch)

paddle.save(g.state_dict(), './output/'+'g')
paddle.save(d.state_dict(), './output/'+'d_o_r')
paddle.save(d.state_dict(), './output/'+'d_o_f')

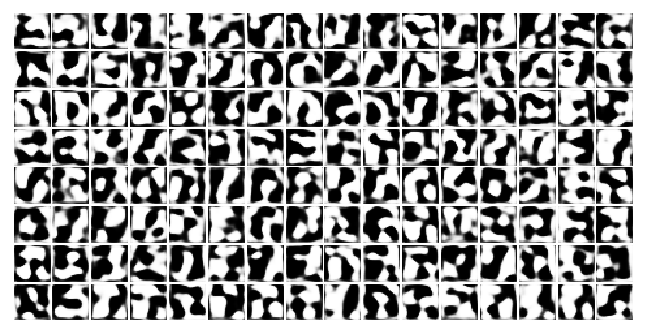

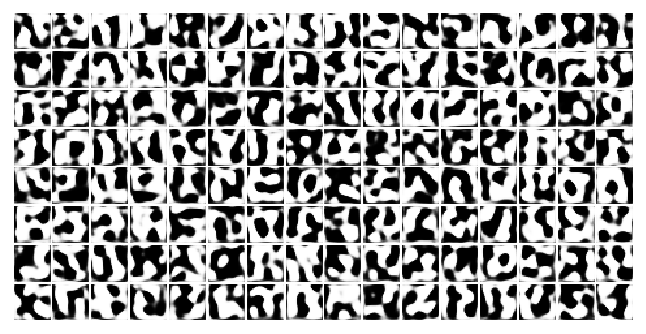

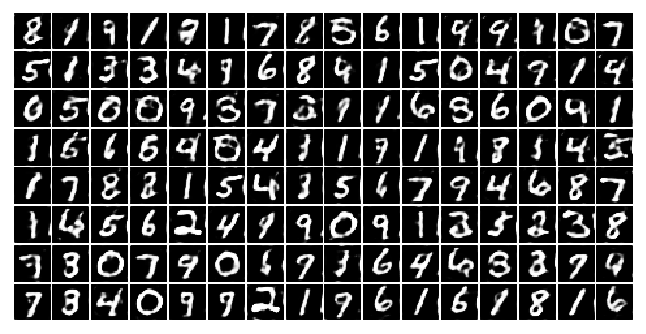

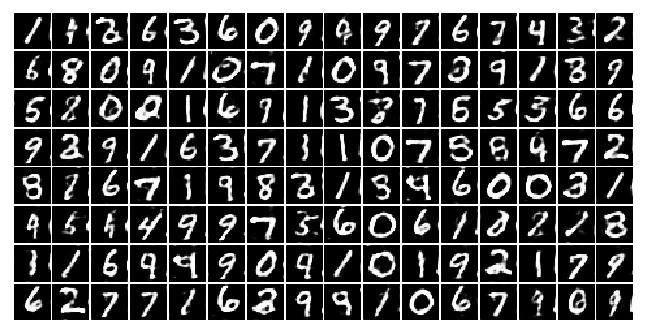

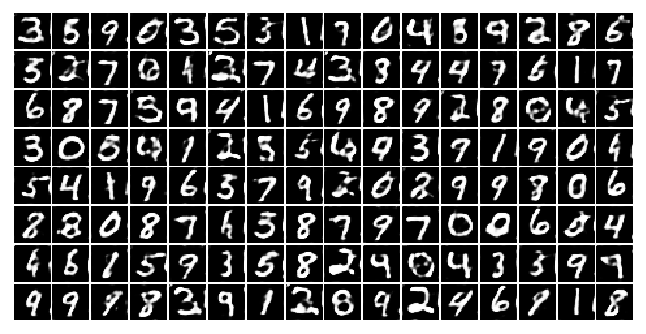

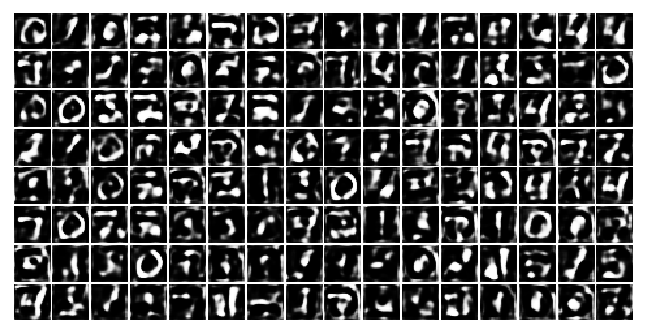

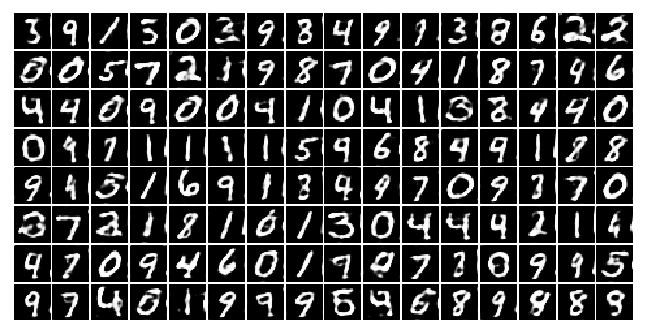

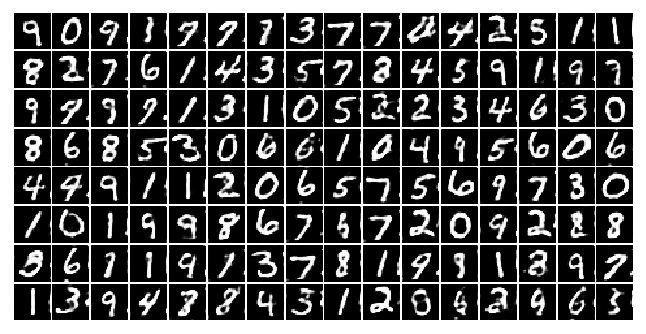

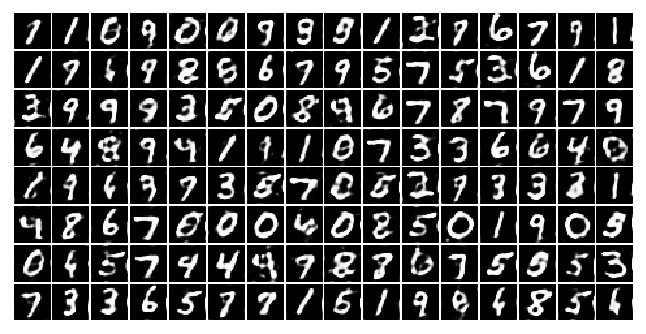

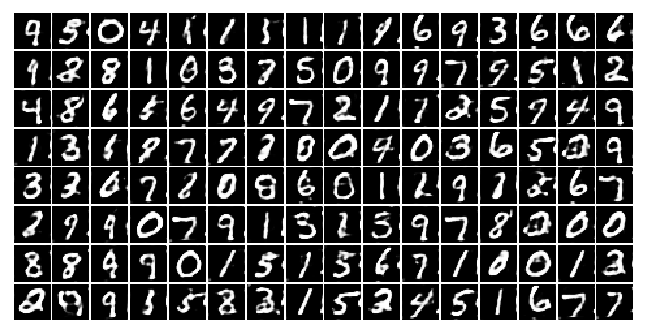

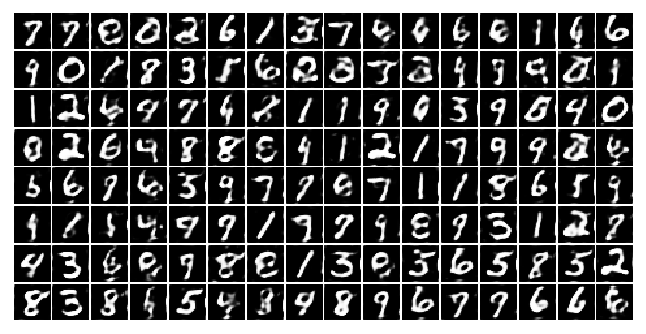

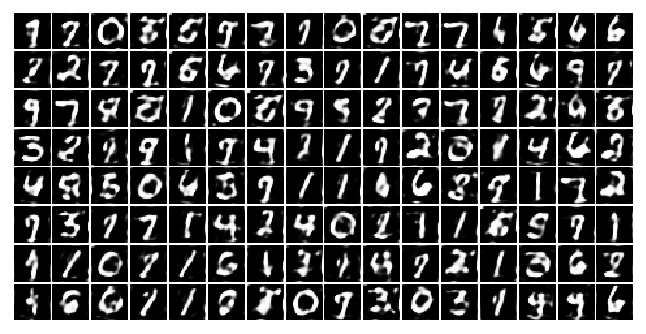

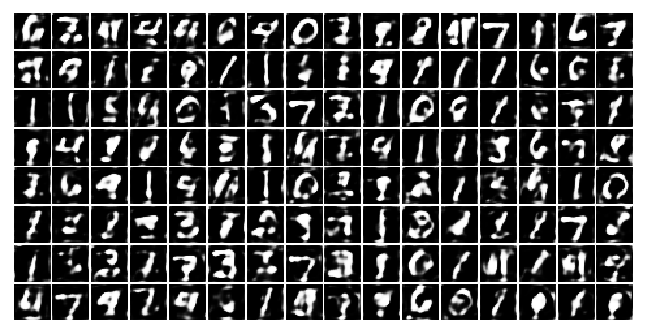

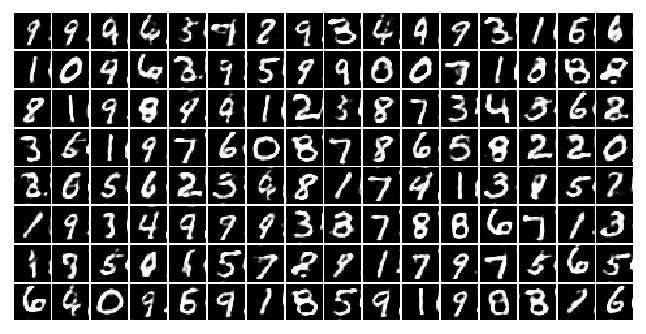

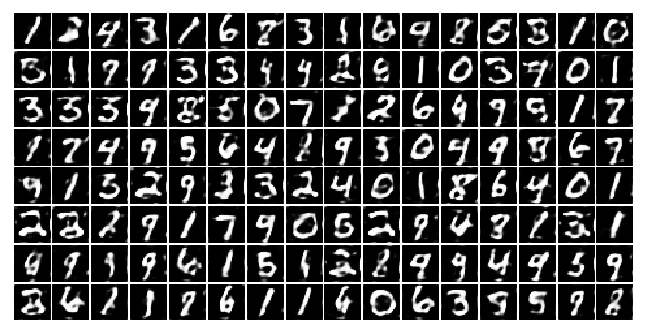

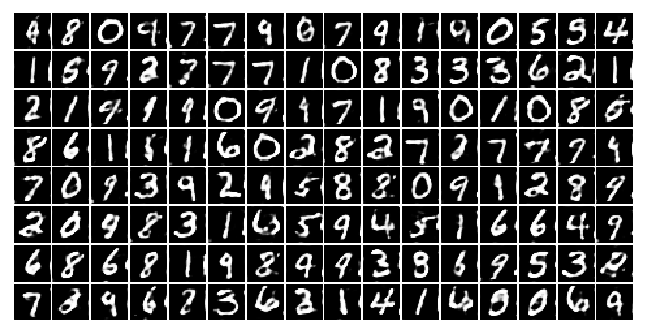

训练输出：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23

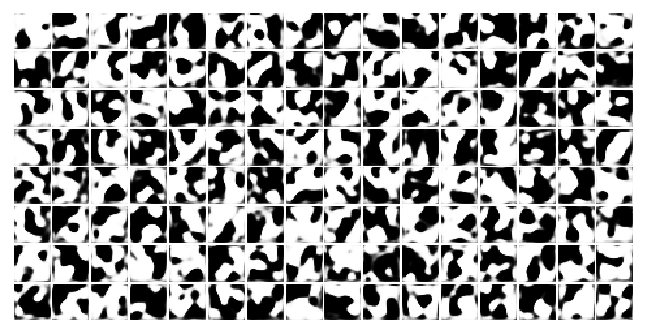

epoch = 0 , batch = 99 , real_d_loss = [0.63881606] , fake_d_loss = [0.43077955] g_loss = [1.1314435]
epoch = 0 , batch = 199 , real_d_loss = [0.4727745] , fake_d_loss = [0.40940467] g_loss = [1.1723493]
epoch = 0 , batch = 299 , real_d_loss = [0.3923043] , fake_d_loss = [0.38755333] g_loss = [1.2083172]
epoch = 0 , batch = 399 , real_d_loss = [0.3553782] , fake_d_loss = [0.3865837] g_loss = [1.2023909]
epoch = 1 , batch = 31 , real_d_loss = [0.30362654] , fake_d_loss = [0.3808377] g_loss = [1.22538]
epoch = 1 , batch = 131 , real_d_loss = [0.3126711] , fake_d_loss = [0.38687515] g_loss = [1.2130171]
epoch = 1 , batch = 231 , real_d_loss = [0.273176] , fake_d_loss = [0.37318167] g_loss = [1.2494049]
epoch = 1 , batch = 331 , real_d_loss = [0.40979803] , fake_d_loss = [0.4624972] g_loss = [1.1285127]
epoch = 1 , batch = 431 , real_d_loss = [0.5482184] , fake_d_loss = [0.4858724] g_loss = [1.1077986]
epoch = 2 , batch = 63 , real_d_loss = [0.5916477] , fake_d_loss = [0.5695666] g_loss = [0.9861771]
epoch = 2 , batch = 163 , real_d_loss = [0.6595901] , fake_d_loss = [0.54358363] g_loss = [1.0098863]
epoch = 2 , batch = 263 , real_d_loss = [0.7349342] , fake_d_loss = [0.5123524] g_loss = [1.0610704]
epoch = 2 , batch = 363 , real_d_loss = [0.88330436] , fake_d_loss = [0.51227736] g_loss = [1.0595765]
epoch = 2 , batch = 463 , real_d_loss = [0.83836365] , fake_d_loss = [0.53332305] g_loss = [0.99540174]

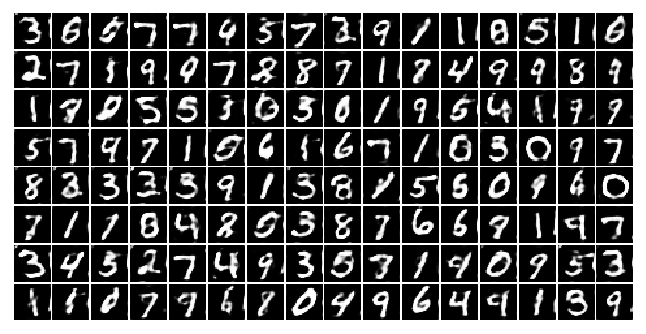

epoch = 3 , batch = 95 , real_d_loss = [0.86019707] , fake_d_loss = [0.53724575] g_loss = [0.9913846]
epoch = 3 , batch = 195 , real_d_loss = [0.8524647] , fake_d_loss = [0.5335064] g_loss = [1.0278957]
epoch = 3 , batch = 295 , real_d_loss = [0.90599334] , fake_d_loss = [0.5457525] g_loss = [0.9990233]
epoch = 3 , batch = 395 , real_d_loss = [0.7981782] , fake_d_loss = [0.539215] g_loss = [0.98800594]

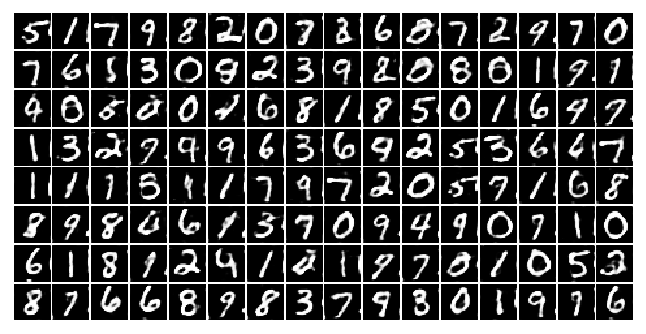

epoch = 4 , batch = 27 , real_d_loss = [0.8963315] , fake_d_loss = [0.5651827] g_loss = [0.94507515]
epoch = 4 , batch = 127 , real_d_loss = [0.8121051] , fake_d_loss = [0.61096513] g_loss = [0.8886054]
epoch = 4 , batch = 227 , real_d_loss = [0.7931969] , fake_d_loss = [0.5683154] g_loss = [0.9184775]
epoch = 4 , batch = 327 , real_d_loss = [0.8052078] , fake_d_loss = [0.55665344] g_loss = [0.947585]
epoch = 4 , batch = 427 , real_d_loss = [0.9077438] , fake_d_loss = [0.52213967] g_loss = [0.9807905]

训练过程中的生成图片（每100步保存一次）：

epoch=0, batch=99

epoch=0, batch=199

epoch=0, batch=299

epoch=0, batch=399

epoch=1, batch=31

epoch=1, batch=131

epoch=1, batch=231

epoch=1, batch=331

epoch=1, batch=431

epoch=2, batch=63

epoch=2, batch=163

epoch=2, batch=263

epoch=2, batch=363

epoch=2, batch=463

epoch=3, batch=95

epoch=3, batch=195

epoch=3, batch=295

epoch=3, batch=395

epoch=4, batch=27

epoch=4, batch=127

epoch=4, batch=227

epoch=4, batch=327

epoch=4, batch=427

生成测试

1
2
3
z = next(z_generator())
fake = g(z[0])
show_image_grid(fake.numpy(), 128, 0)

最终生成结果
